Description

Key Specifications of MSI GeForce RTX 5080 16G SHADOW 3X OC — Graphics Card

• • Graphics Processing Unit: NVIDIA GeForce RTX 5080
  • Interface: PCI Express Gen 5
  • Core Clocks: Extreme Performance 2655 MHz (via MSI Center) / Boost 2640 MHz
  • CUDA Cores: 10,752 Units
  • Memory: 16GB GDDR7
  • Memory Speed: 30 Gbps
  • Memory Bus: 256-bit
  • Memory Bandwidth: 960 GB/s

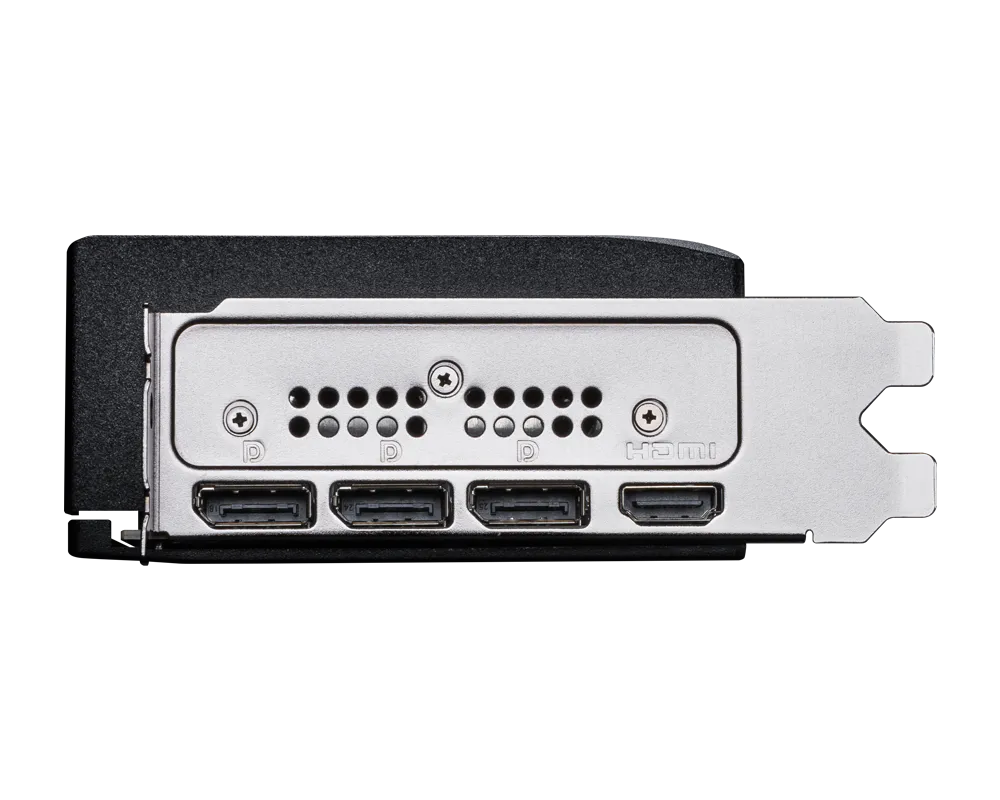

  • Display Outputs: 3x DisplayPort (v2.1b), 1x HDMI (2.1b — up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
  • HDCP Support: Yes
  • Max Resolution: 7680 x 4320
  • Maximum Displays: 4
  • Power Consumption: 360W

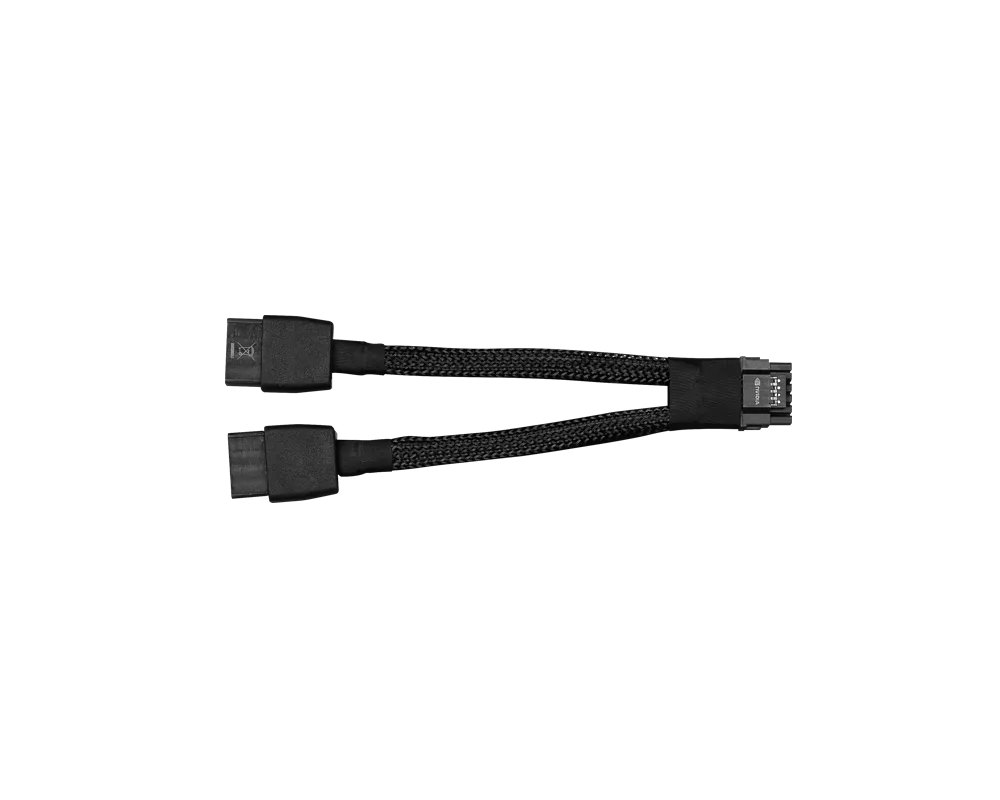

  • Power Connector: 1x 16-pin (12VHPWR)
  • Recommended PSU: 850W
  • Card Dimensions: 303 x 121 x 49mm
  • Weight: 6.00 lbs (with packaging)
  • DirectX Support: DirectX 12 Ultimate
  • OpenGL Support: 4.6

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4.5
• SFF-Ready Enthusiast GeForce Card
• Core Clocks:
  Extreme Performance: 2497 MHz (MSI Center)
  Boost: 2482 MHz

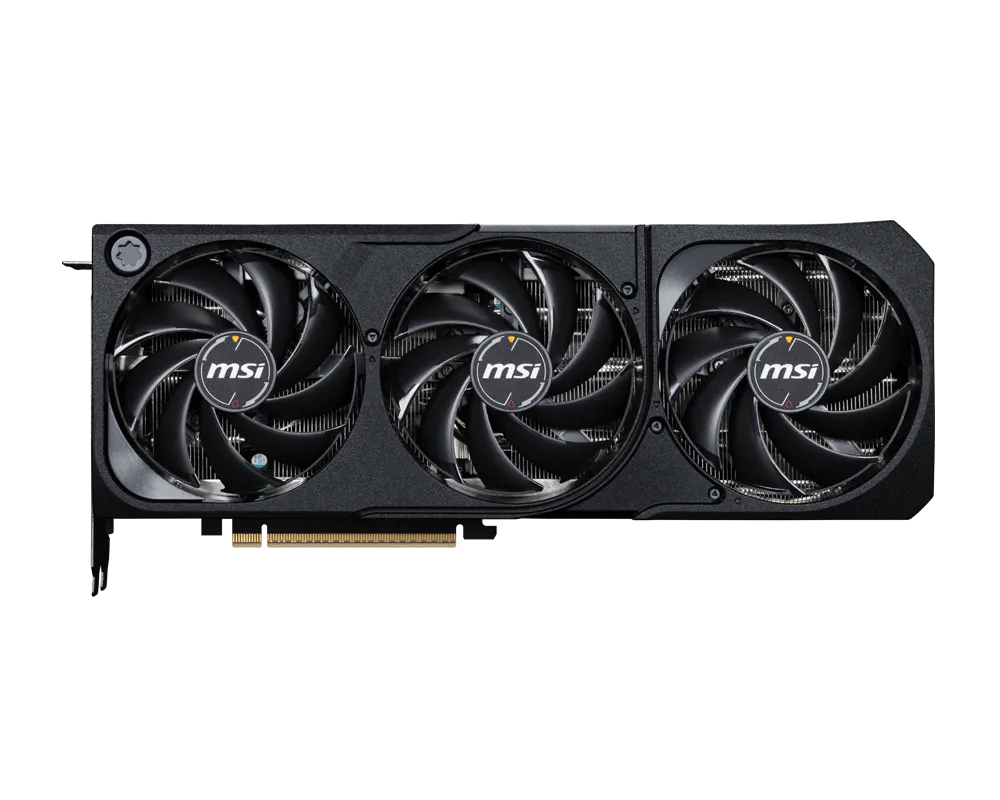

• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.

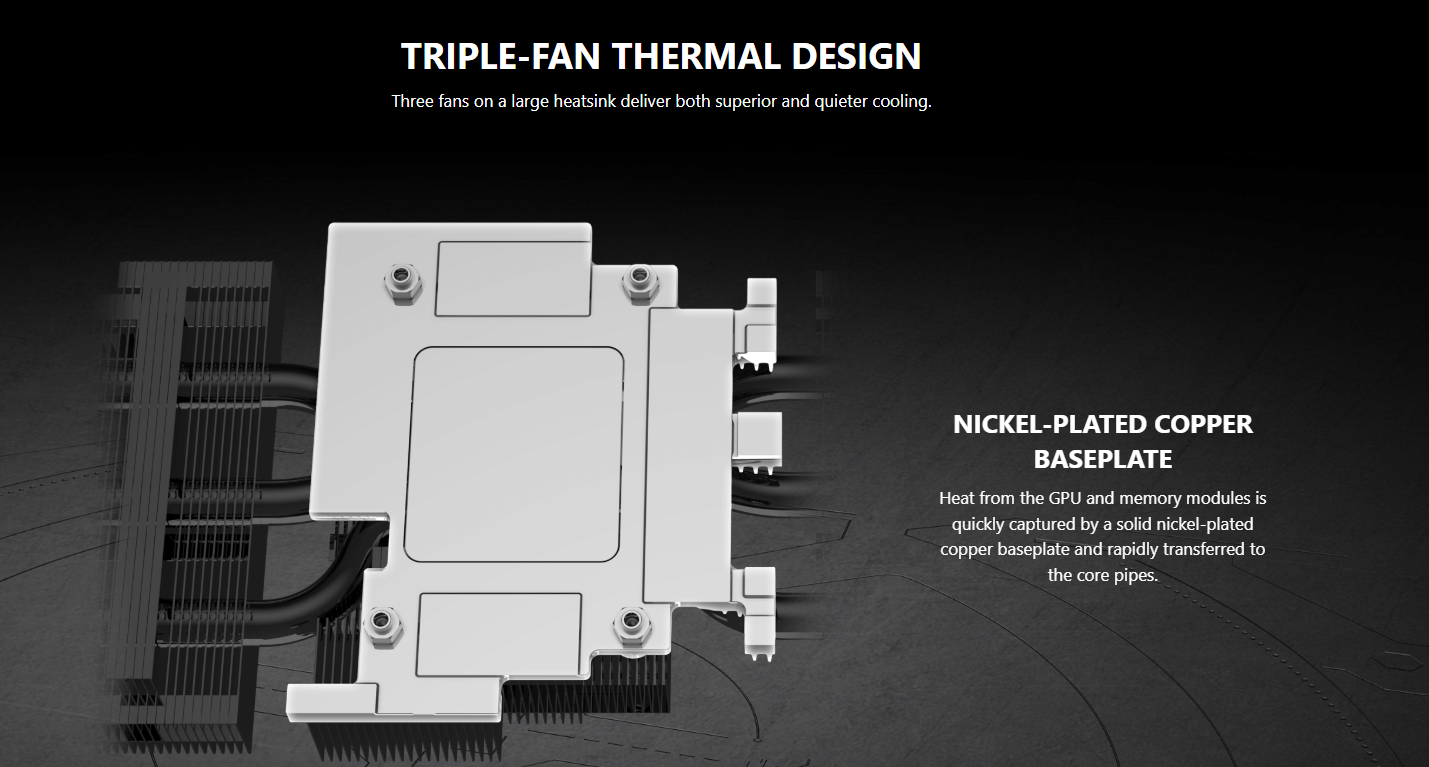

• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.

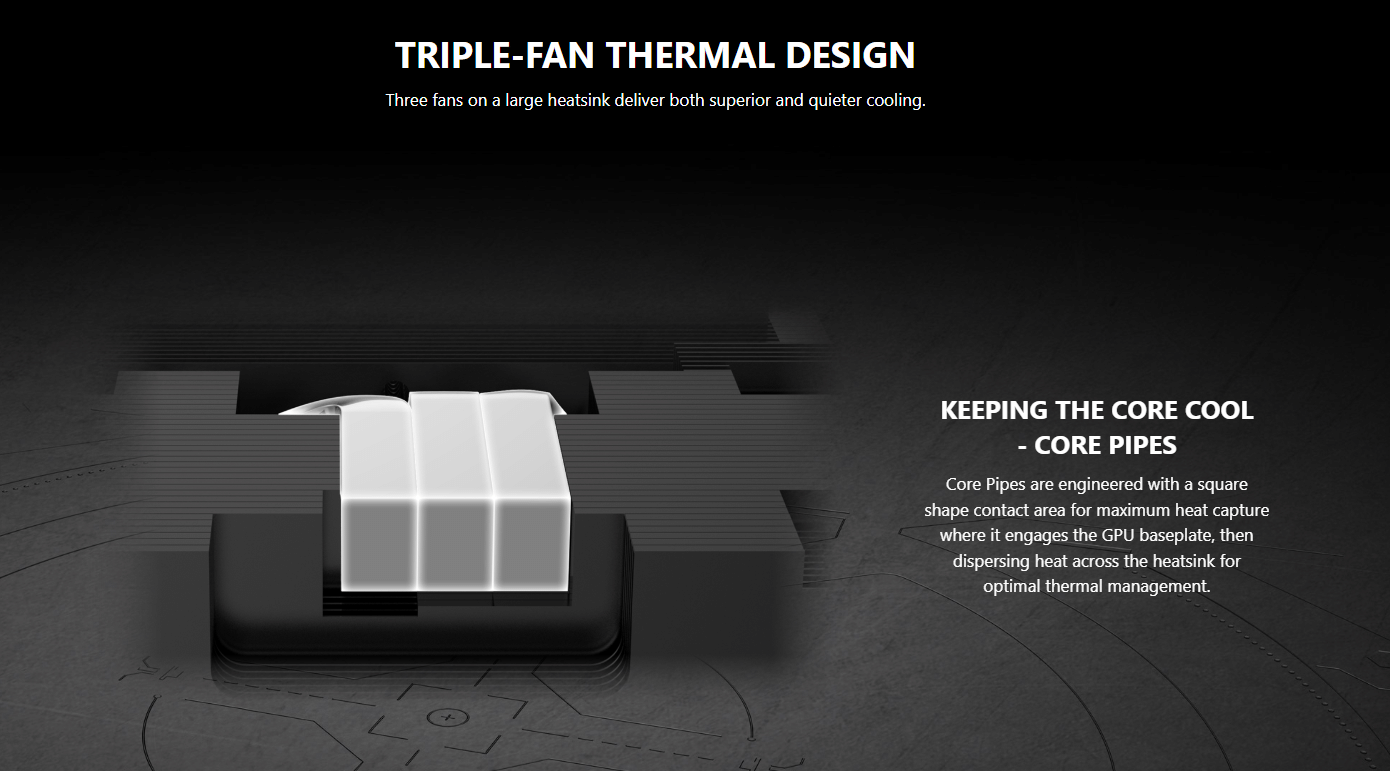

• Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

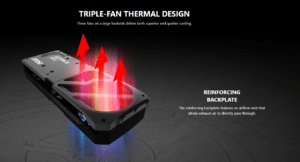

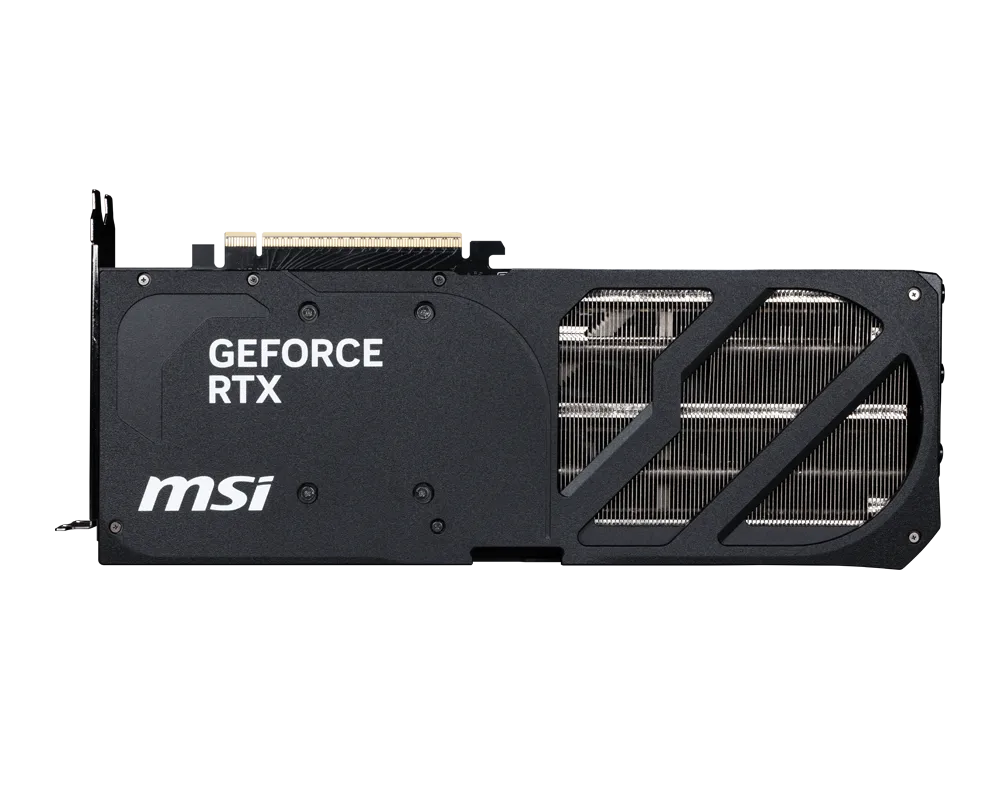

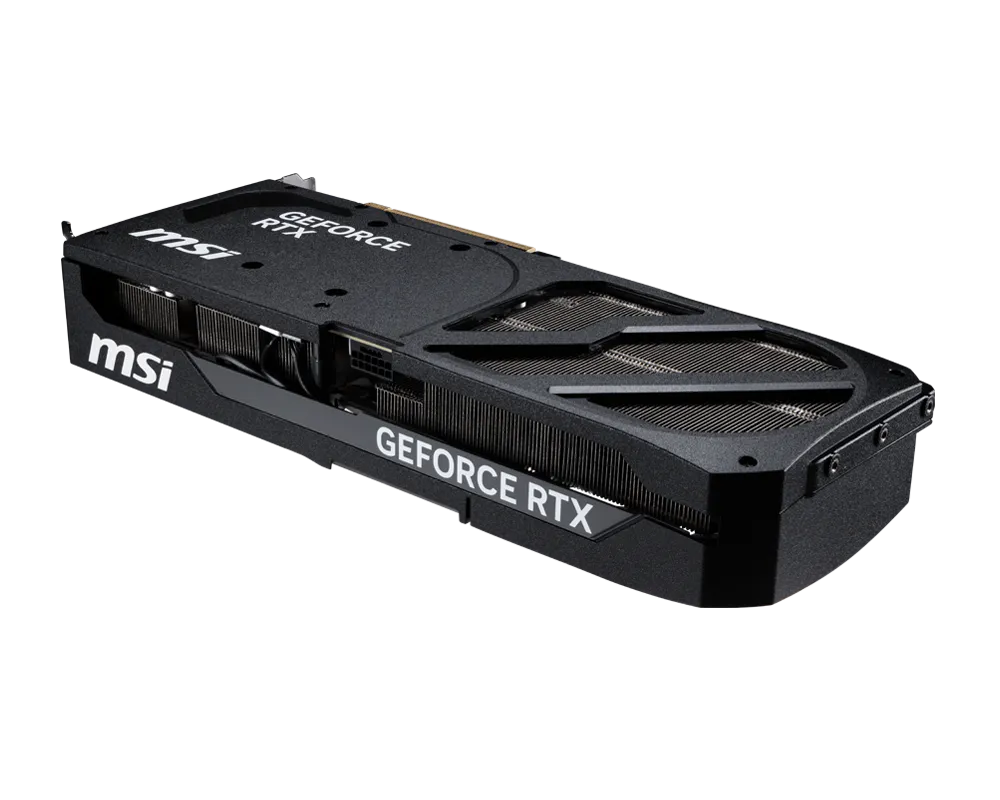

• Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
