Description

Key Specifications

• CPU Socket: Socket TR4, supporting AMD Ryzen Threadripper processors
• Power Delivery: 19-phase digital VRM design with dual 8-pin EPS connectors for stable, high-end overclocking
• Memory: 8 DIMM slots supporting DDR4 SDRAM, up to 128 GB, arranged in quad-channel configuration across two banks flanking the CPU socket, with speeds up to 3600MHz+ (OC)
• Expansion Slots: 5 total PCI Express slots — 4x PCIe 3.0 x16 and 1x PCIe 3.0 x1
• Storage: 8 SATA III ports plus support for up to 7 Turbo M.2 slots (achieved via the included M.2 Xpander-AERO add-in card), with M.2 Shield thermal protection and AMD StoreMI technology support
• Networking: Dual Gigabit LAN via Intel I211AT controllers, plus integrated WiFi and Bluetooth connectivity
• Audio: Realtek ALC1220 codec delivering 7.1-channel surround sound

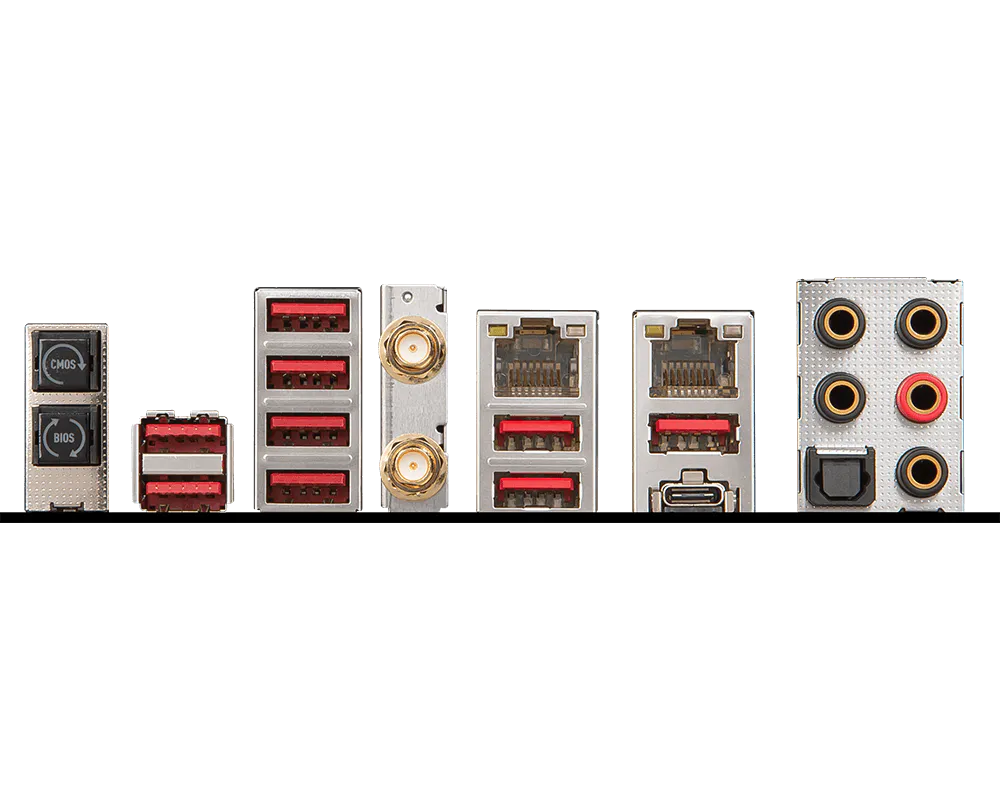

• USB Connectivity: A total of 15 USB 3.1 ports, including 8x USB 3.0, plus a USB 3.1 Type-A and Type-C combo port Wccftech
• Form Factor: E-ATX (larger than standard ATX to accommodate the extensive heatsink and component layout)
• Design: Bold, distinctive styling with oversized heatsinks covering the VRM and chipset areas, plus customizable RGB LED lighting

Ideal For

Professional content creators, 3D rendering workstations, video editing rigs, and enthusiasts who need massive multi-core CPU performance combined with extensive storage and connectivity options.
