Description

Category	Details
CPU Socket	Intel LGA1700 — supports 14th, 13th & 12th Gen Intel Core™, Pentium Gold & Celeron processors
Chipset	Intel® H610
Memory	2x DIMM slots, DDR4, up to 64GB, speeds up to 3200MHz, Dual-channel, XMP support
Graphics Output	1x HDMI™ (supports 4K@60Hz)
Expansion Slots	1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Storage	1x M.2 slot (Key M, 2242/2260/2280, PCIe 3.0 x4) + 4x SATA 6Gb/s ports
LAN	1x Realtek 1Gb Ethernet
Rear USB	2x USB 5Gbps (Type-A) + 4x USB 2.0 (Type-A)
Front USB (headers)	1x USB 5Gbps header (+2 ports), 1x USB 2.0 header (+1 port)
Audio	Realtek 7.1 Surround Sound HD Audio CODEC, up to 24-Bit/192kHz

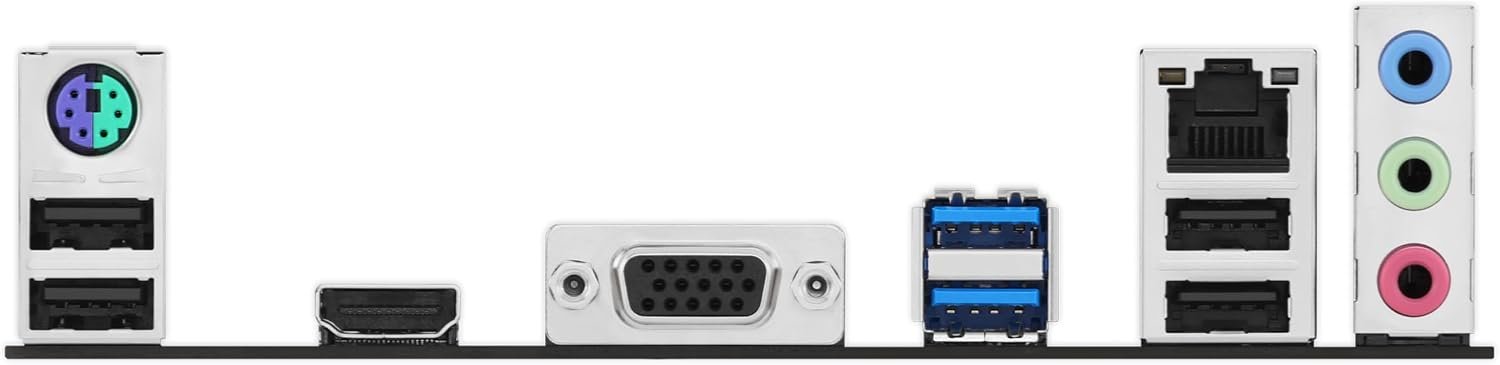

Back Panel I/O	2x USB 5Gbps, 4x USB 2.0, 1x HDMI, 1x LAN port, 3x audio jacks, 1x PS/2 combo port
Fan Headers	1x 4-pin CPU Fan, 1x 4-pin Chassis Fan
Power Connectors	1x 24-pin main, 1x 8-pin +12V
RGB Headers	2x Addressable Gen 2 (ARGB) headers
BIOS	128Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX, 9.2″ x 8.0″ (23.4 x 20.3 cm)
OS Support	Windows 11 / Windows 10 64-bit

ASUS 5X Protection III – DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core, stainless-steel back I/O
ASUS Q-Design – Q-DIMM, Q-LED Core (troubleshooting LED), Q-Slot
Aura Sync – 2x Addressable Gen 2 RGB headers for synced lighting
Two-Way AI Noise Cancelation – software-based mic/speaker noise reduction
Armoury Crate – centralized system control (lighting, fan curves, monitoring)
PCIe 4.0 support for next-gen GPU/storage bandwidth
Aluminum heatsink thermal design
